Fully Automated Clinical Chemistry Analyzer
Biotechnosis-37K is an automated clinical chemistry analyzer designed to meet the needs of clinical laboratories with high accuracy, stable throughput, and efficient operation. This instrument is suitable for hospitals, clinics, and diagnostic laboratories that require reliable performance for both routine and advanced testing.
Performance
Fitur Utama
-
Fully Automated System
Proses analisis berjalan otomatis. -
Throughput Tinggi & Stabil
Kecepatan pemeriksaan 300 test per jam. -
High Precision Optical System
Sistem optik yang presisi tinggi. -
Automatic Sample & Reagent Loading
49 Sample posisi, 56 Reagen. -
120 Reusable Reaction Cuvettes
Mendukung penghematan biaya operasional. -
User-Friendly Software Interface
Antarmuka perangkat lunak intuitif, mudah dioperasikan.
Spesifications

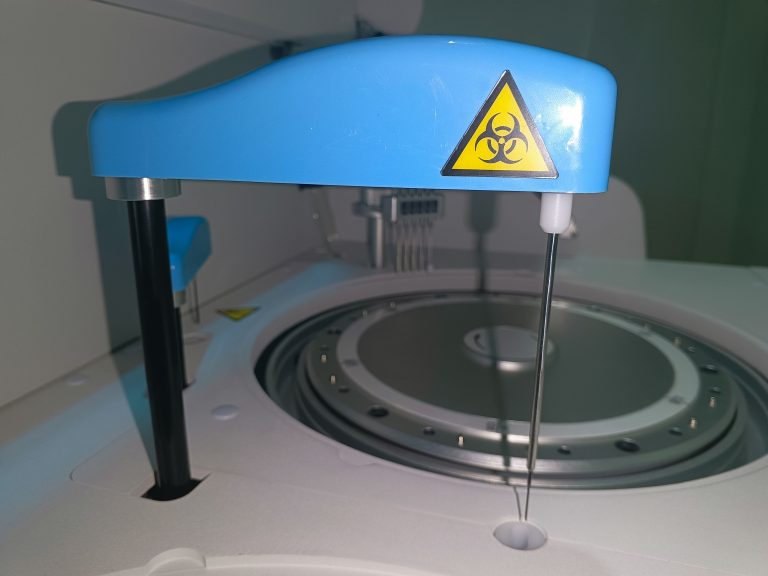

Sample & Reagent Needle
Equipped with liquid level detection sensors, Teflon-coated to reduce cross-contamination, anti-collision protection, and automatic position reset.

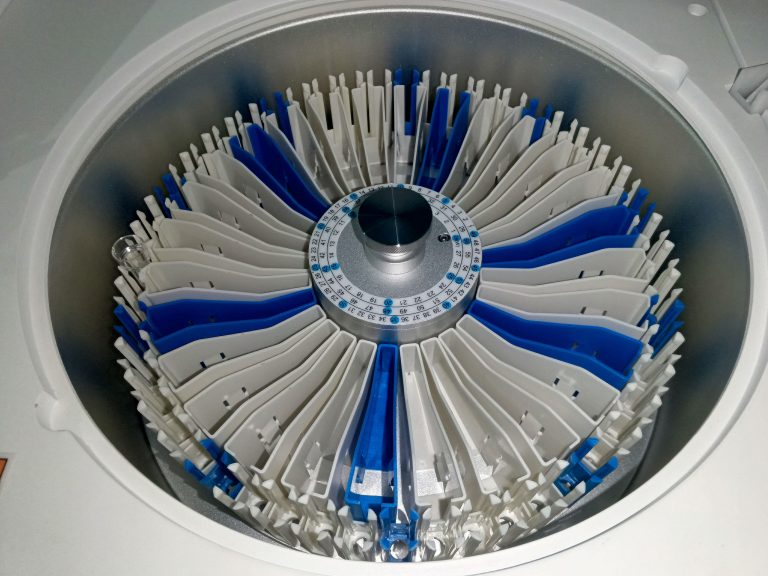

Reaction Cuvettes :120 reusable reaction cuvettes.
High Precision Optical System : A high-precision optical system ensures accurate and consistent test results.

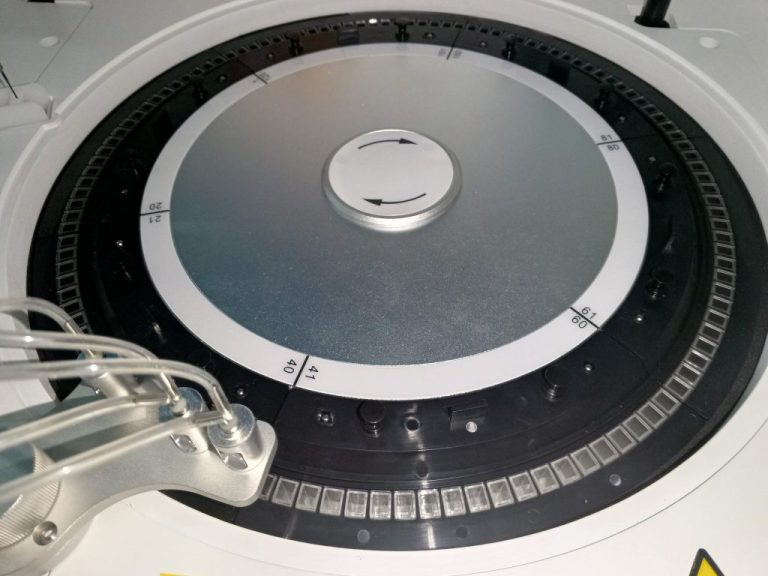

Sample & Reagent Tray Capacity
Sample Tray: 49 positions, Reagent Tray: 56 positions
Equipped with a 24-hour refrigeration system to ensure reagents remain stable and safe.

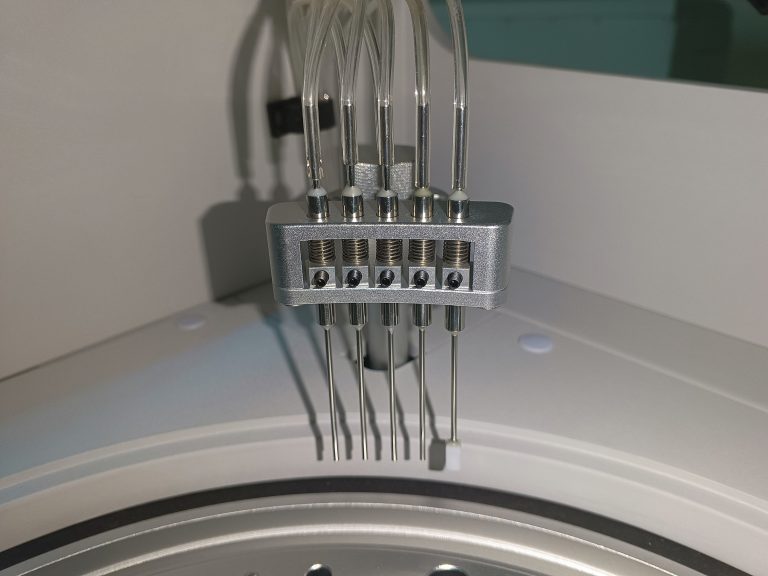

Automatic Washing System
An automatic reaction cuvette washing system that ensures cross-contamination (carryover) does not occur between tests, maintaining accurate and consistent analysis results.
Assay Testing
Test Parameters
Biotechnosis-37K supports a wide range of clinical chemistry parameters, including:
-
Liver function
-
Kidney function
-
Metabolic parameters
-
Enzymes and other parameters
(depending on the methods and reagents used)
Reagent Compatibility
Compatibility: Supports a wide range of commercial reagents, calibrators, and controls (open system).
Dimensions
Environmental Requirements
-
Operating Temperature: 15 – 30 °C
-
Humidity: 40 – 85 %
-
Power Supply: 220 V AC / 300 VA
Dimensions & Weight
-
External Dimensions (L × W × H): 950 × 600 × 515 mm
-
Net Weight: 75 kg
-
Package Dimensions (L × W × H): 1130 × 735 × 1040 mm
-
Gross Weight: 130 kg
Installations & Support
Installation & Support
-
Installation and commissioning by Sintech’s technical team
-
Operator training
-
Service & maintenance support
Documentation
Compliance & Documentation
-
Designed in accordance with medical device safety and quality principles
-
Supports technical documentation and audit requirements
More Information
For final specification details, system configuration, or technical consultation, please contact our team via the Technical Support page.
Benefits for Laboratories
-
Increases analyst productivity
-
Reduces manual errors
-
More efficient operational costs
-
Suitable for both growing and established laboratories
Information & Quotation
For further technical information or pricing inquiries, please contact the PT. Sintech Manunggal Sejahtera team.
SintechDX Technology for Better Healthcare
