Technical Specifications

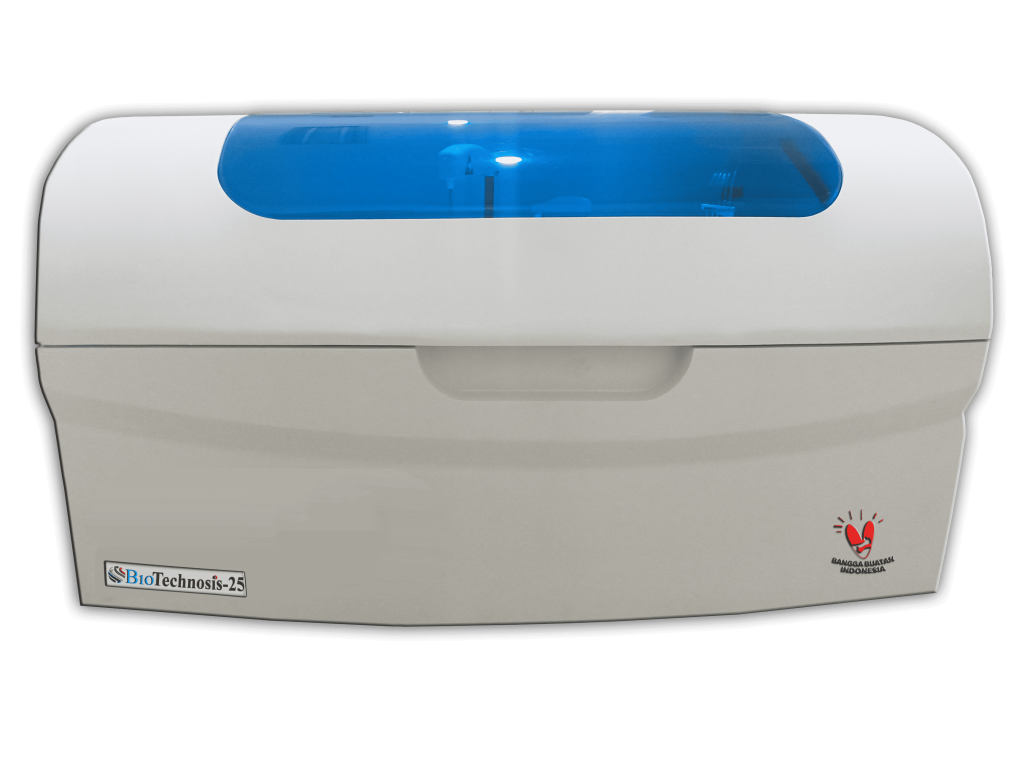

BioTechnosis-25 is a clinical chemistry analyzer designed to support routine clinical chemistry testing, with a focus on system reliability, result accuracy, and ease of operation in clinical laboratories.
Product Informations
Overview
-
Type: Automatic Clinical Chemistry Analyzer
-
Test Methods: Photometry / End Point / Kinetic / Two-point, etc.
-
Applications: Routine clinical chemistry
-
Operating Mode: Random Access, STAT
-
Target Users: Clinical laboratories, hospitals, and healthcare facilities
-
Light Source: 12/20 Watt halogen lamp
-
Wavelengths: 340, 505, 546, 570, 600, 630, 700, 750, 800 nm
-
Detection System: Precision optical sensor
-
Optical Stability: Designed for continuous use with long service life
-
Mixing System: Automatic independent probe
Spesifications
Throughput: Up to 200 tests/hour

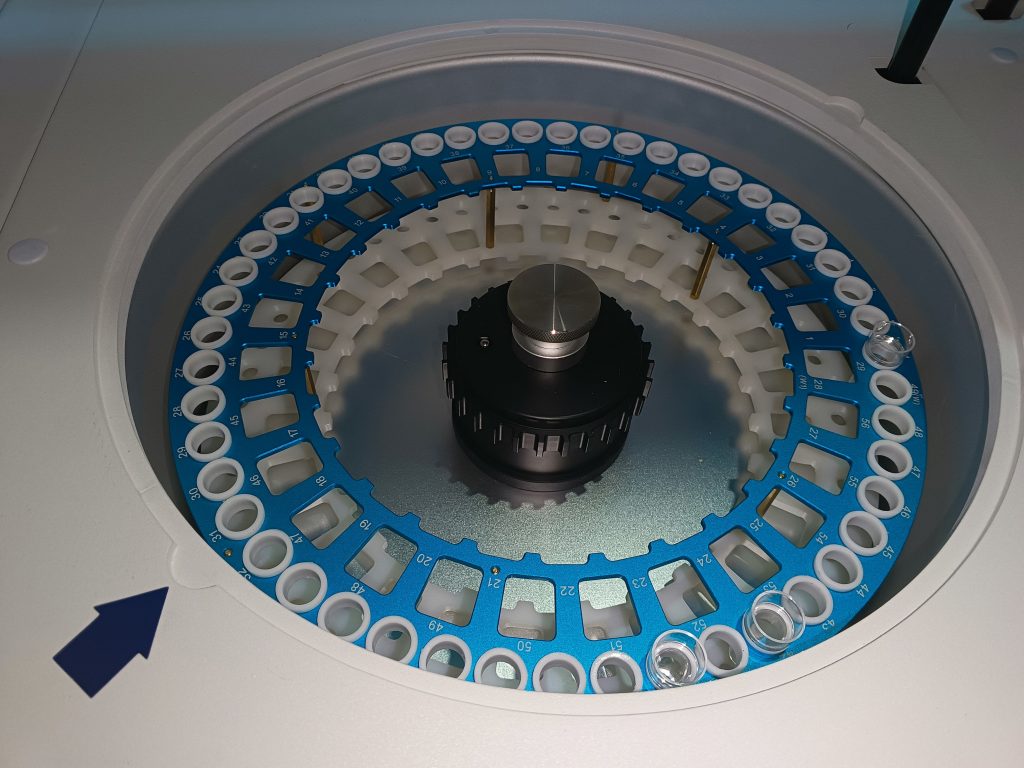

Sample Positions: 49 sample positions
Reagent Positions: 56 reagent positions
Temperature Control: Stable and controlled, 24-hour refrigerated system
Reaction Cuvettes: 120 cuvettes – reusable cuvettes
Cuvette Washing: Automatic
Cuvette Reuseable: Yes
Minimum Reaction Volume: 120 µL
-

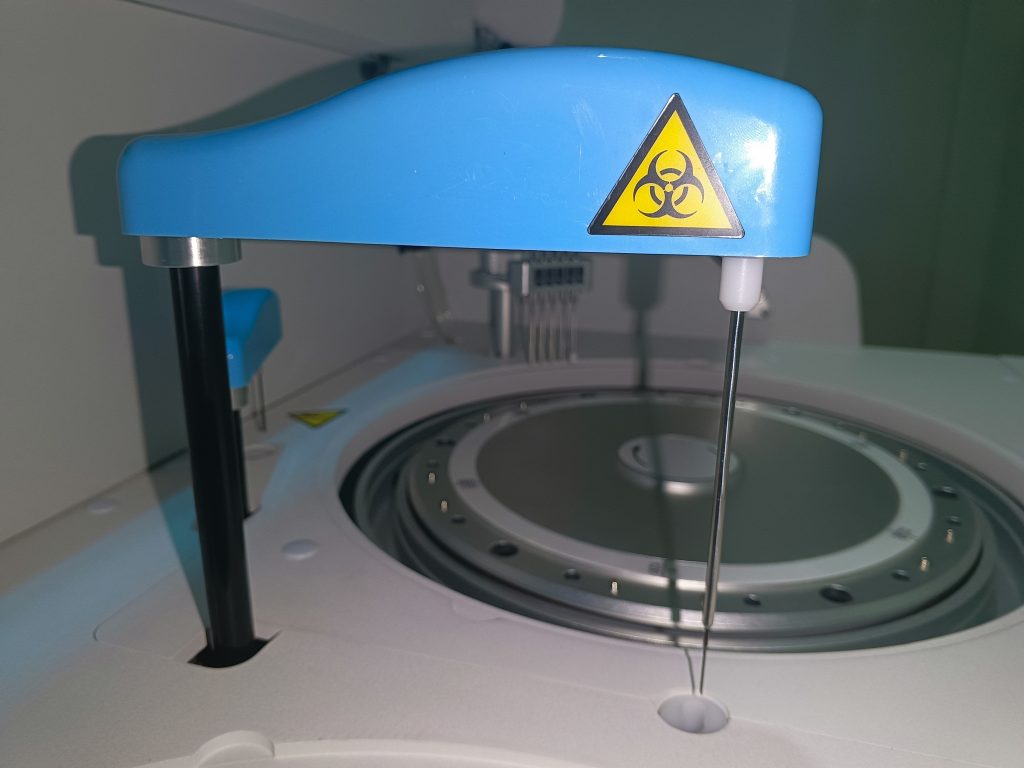

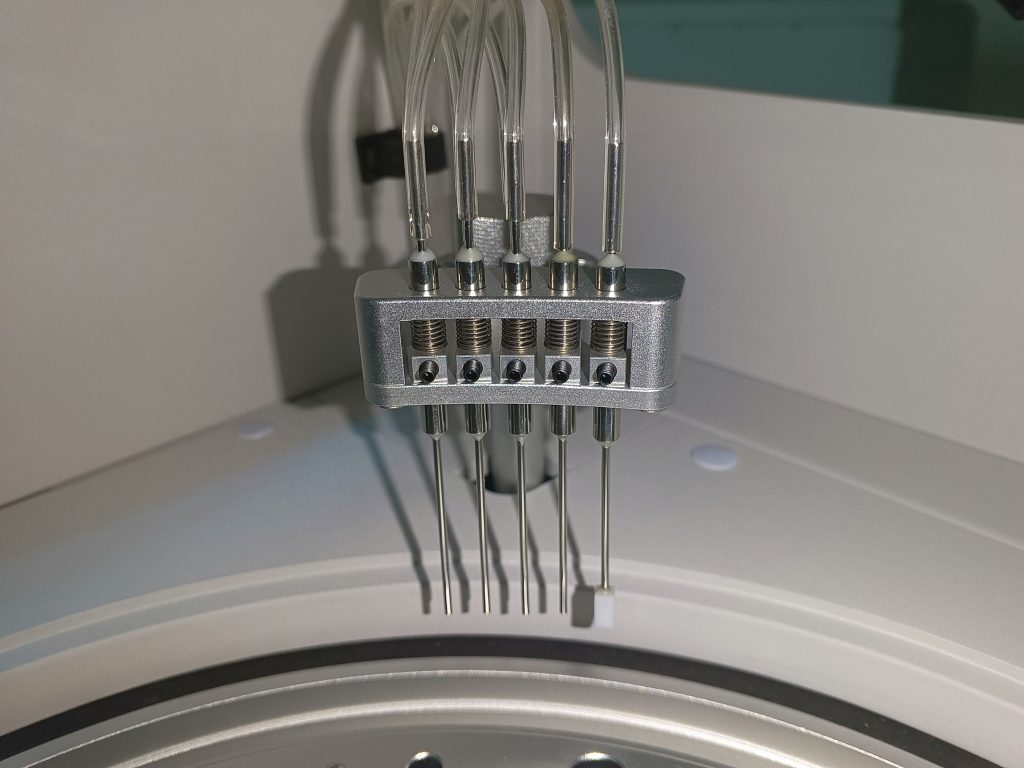

Pipetting System:
Automatic sample and reagent aspiration -
Materials & Features:
Teflon-coated probe, anti-collision protection, and liquid level detection
-
Washing System: Automatic
-
Carryover Prevention:
Automatic washing after each test to prevent carryover
System Control & Software
Control System & Software
-
User Interface: User-friendly
-
Data Management: Storage and traceability of test results
-
Quality Control (QC): Supports QC setup, Levey–Jennings charts, and QC evaluation
-
Calibration: Supports multi-point, one-point, and linear calibration
-
Connectivity: USB drive, LIS integration, HL7 support
Reagent Compatibility
Reagent Compatibility
-
Supports the use of BioTechnosis reagents
-
Compatible with open-system reagents
-
Supports open-system calibrators and QC
Support Instalations
Installation & Support
-
Installation and commissioning by Sintech’s technical team
-
Operator training
-
Service & maintenance support
Environmental Requirements & Product Dimensions
Environmental Requirements
-
Operating Temperature: 15 – 30 °C
-
Humidity: 40 – 85 %
-
Power Supply: 220 V AC / 300 VA
Dimensions & Weight
-
External Dimensions (L × W × H): 950 × 600 × 515 mm
-
Net Weight: 75 kg
-
Package Dimensions (L × W × H): 1130 × 735 × 1040 mm
-
Gross Weight: 135 kg
Documentations
Compliance & Documentation
-
Designed in accordance with medical device safety and quality principles
-
Supports technical documentation and audit requirements
More Information
For final specification details, system configuration, or technical consultation, please contact our team via the Technical Support page.
